Lattice grids for inla.mesh

since 23.08.18. Use fmesher::fm_lattice_2d() instead.

Construct a lattice grid for inla.mesh()

inla.mesh.lattice(
  x = seq(0, 1, length.out = 2),
  y = seq(0, 1, length.out = 2),
  z = NULL,
  dims = if (is.matrix(x)) {
     dim(x)
 } else {
     c(length(x), length(y))
 },
  units = NULL,
  crs = NULL
)

Arguments

x

vector or grid matrix of x-values

y

vector of grid matrix of y-values

z

if x is a matrix, a grid matrix of z-values

dims

the size of the grid, length 2 vector

units

One of c("default", "longlat", "longsinlat").

crs

An optional CRS or inla.CRS object

Value

An inla.mesh.lattice object.

See also

inla.mesh()

Author

Finn Lindgren finn.lindgren@gmail.com

Examples

lattice <- inla.mesh.lattice(seq(0, 1, length.out = 17), seq(0, 1, length.out = 10))
#> Warning: `inla.mesh.lattice()` was deprecated in INLA 23.08.18.
#> ℹ Please use `fmesher::fm_lattice_2d()` instead.
#> ℹ For more information, see
#>   https://inlabru-org.github.io/fmesher/articles/inla_conversion.html
#> ℹ To silence these deprecation messages in old legacy code, set
#>   `inla.setOption(fmesher.evolution.warn = FALSE)`.
#> ℹ To ensure visibility of these messages in package tests, also set
#>   `inla.setOption(fmesher.evolution.verbosity = 'warn')`.

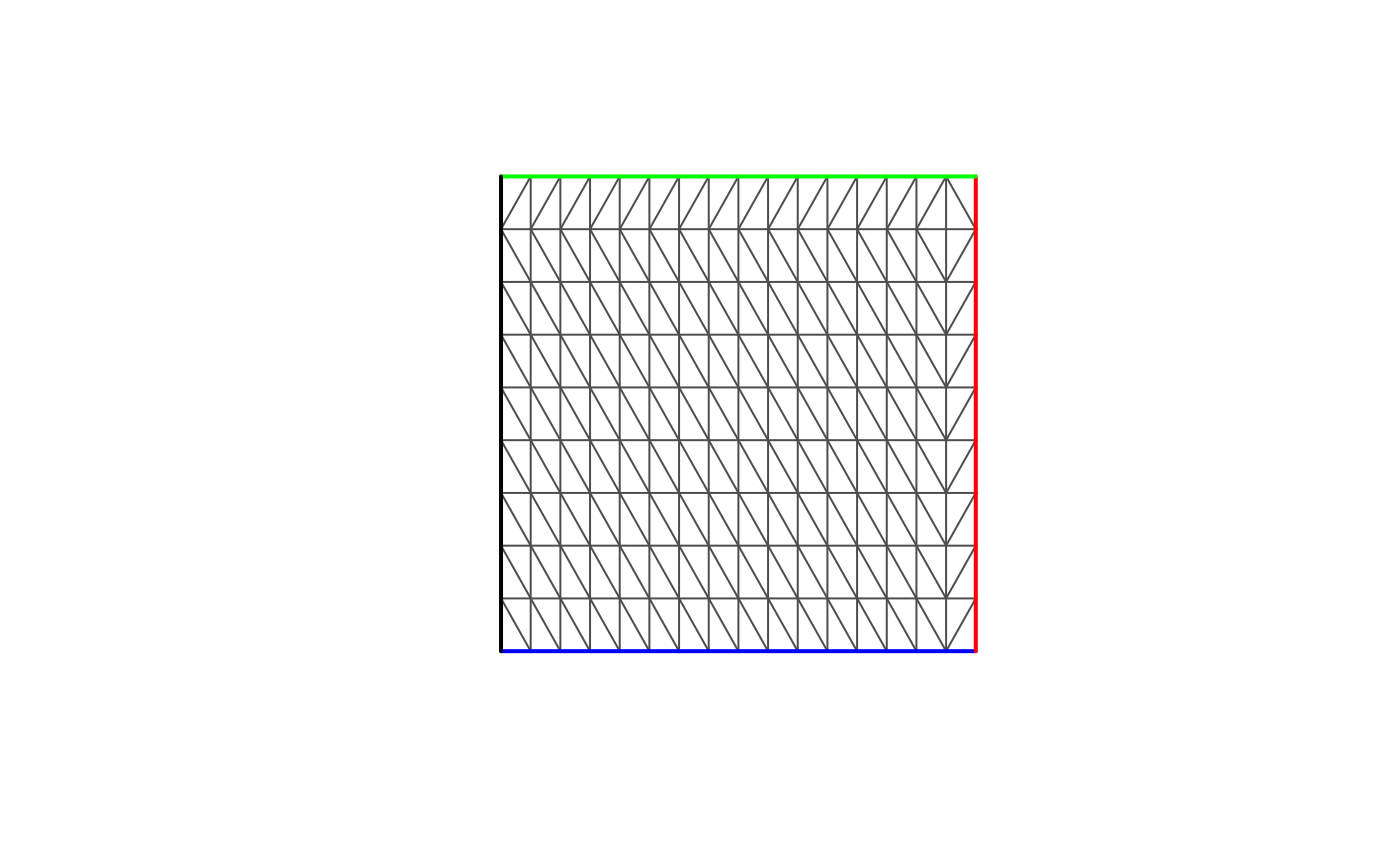

## Use the lattice "as-is", without refinement:
mesh <- inla.mesh.create(lattice = lattice, boundary = lattice$segm)
mesh <- inla.mesh.create(lattice = lattice, extend = FALSE)
plot(mesh)

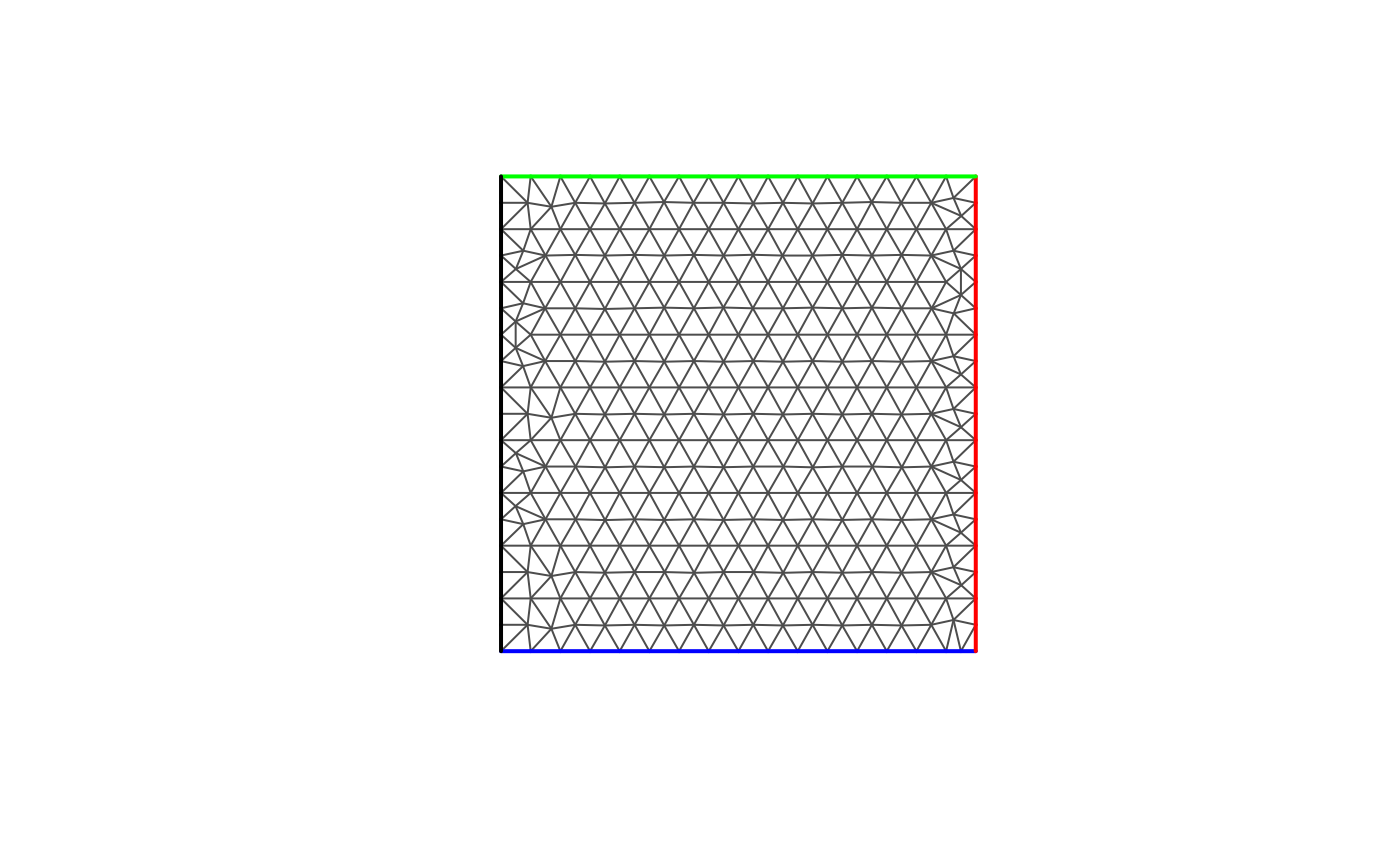

## Refine the triangulation, with limits on triangle angles and edges:
mesh <- inla.mesh.create(
  lattice = lattice,
  refine = list(max.edge = 0.08),
  extend = FALSE
)
plot(mesh)

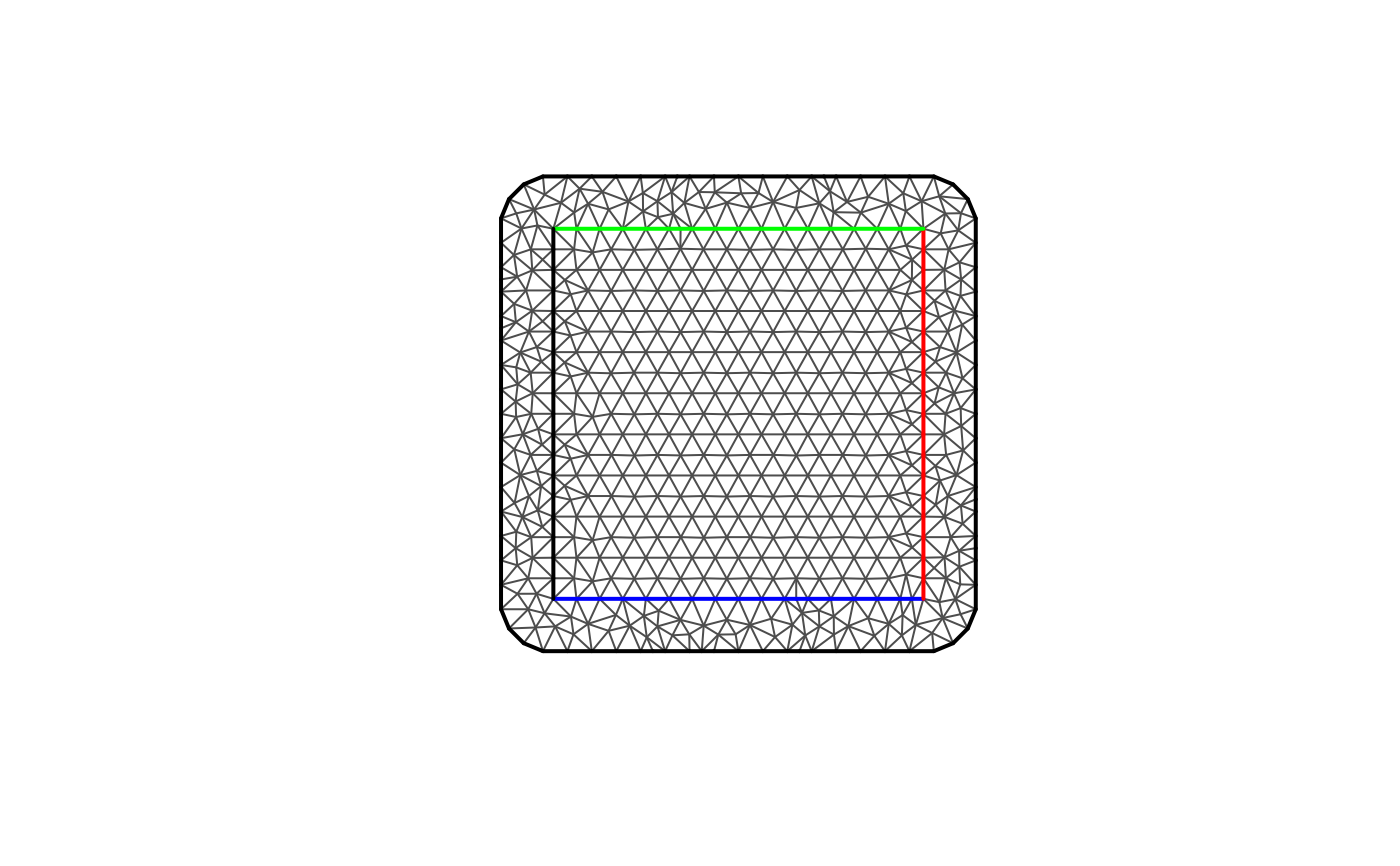

## Add an extension around the lattice, but maintain the lattice edges:
mesh <- inla.mesh.create(
  lattice = lattice,
  refine = list(max.edge = 0.08),
  interior = lattice$segm
)
plot(mesh)

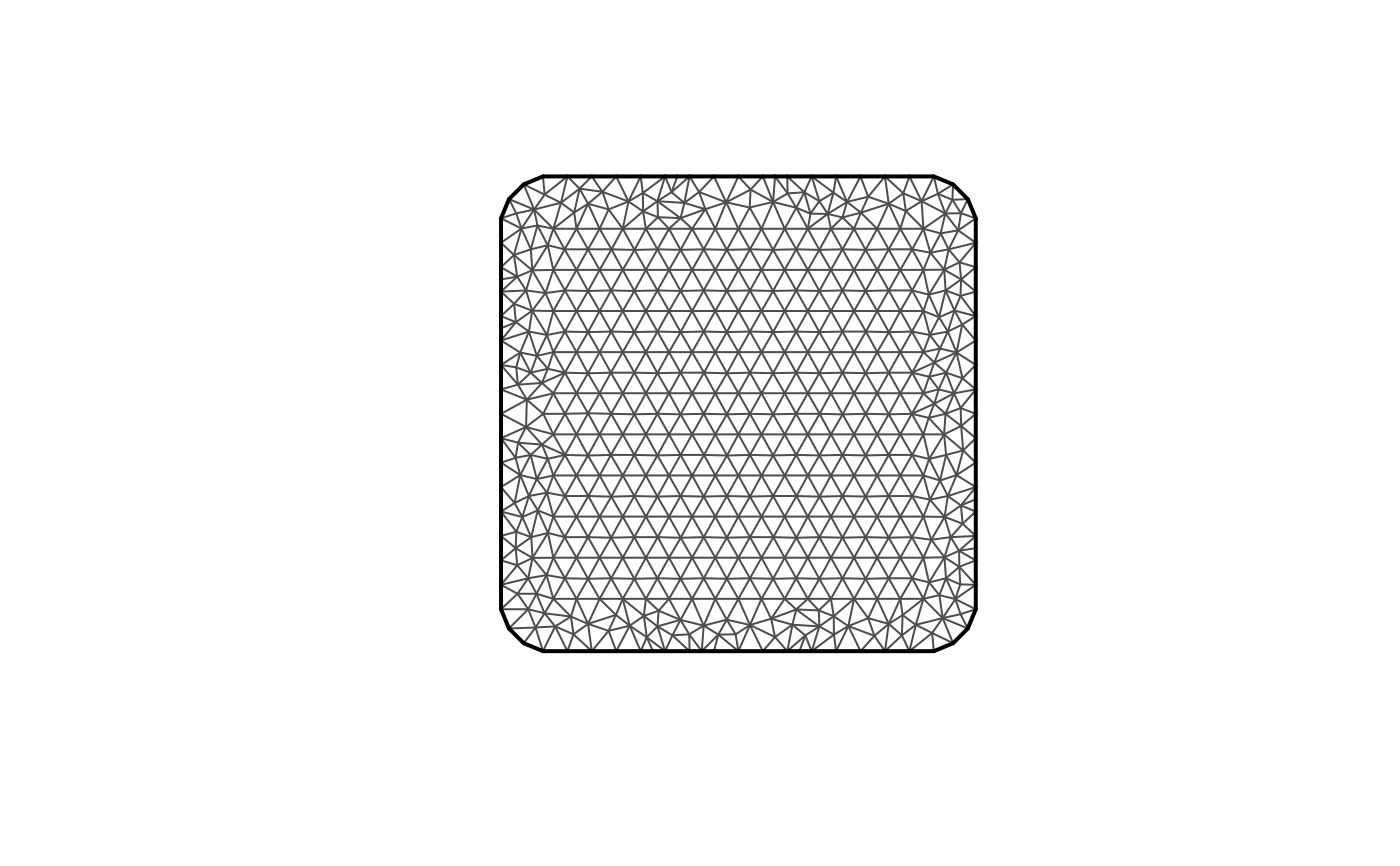

## Only add extension:
mesh <- inla.mesh.create(lattice = lattice, refine = list(max.edge = 0.08))
plot(mesh)
